IDEA DOLOMITY carbon wheels off-road

IDEA / CARBON MTB WHEELS

DOLOMITY

Low weight and strength for real terrain

Discover the model ranges Compare all models
26 / 31 mmInternal rim widths
−3 mmAsymmetric geometry
up to 130 kgWeight limit by range

IDEA / OFF-ROAD STRENGTH AND LIGHTNESS

Your line
A new advantage

DOLOMITY carbon wheels use asymmetric rim geometry with a −3 mm offset. This adjusts spoke angles towards the hub and helps combine low weight with strength and durability.

Two internal widths, 26 and 31 mm, BOOST axles and two spoke types. Explore the construction, components and all four standard configurations.

01 / WEIGHTfrom 990 g

See the full comparison for weights by model and specification

02 / CARBON SPOKESLighter spokes

Greater strength and weight savings of up to 200 g according to the catalogue

03 / TUBELESS SYSTEMmilKit

A tubeless kit for a compatible rim and tyre combination

04 / OUR OWN SIGNATUREIDENTITY BLACK

Matt black with understated IDEA logo graphics

01 / MODEL RANGES

DOLOMITY
& DOLOMITY EVO

Shared carbon rims
Different spoke and hub levels

01Reliability for every mile

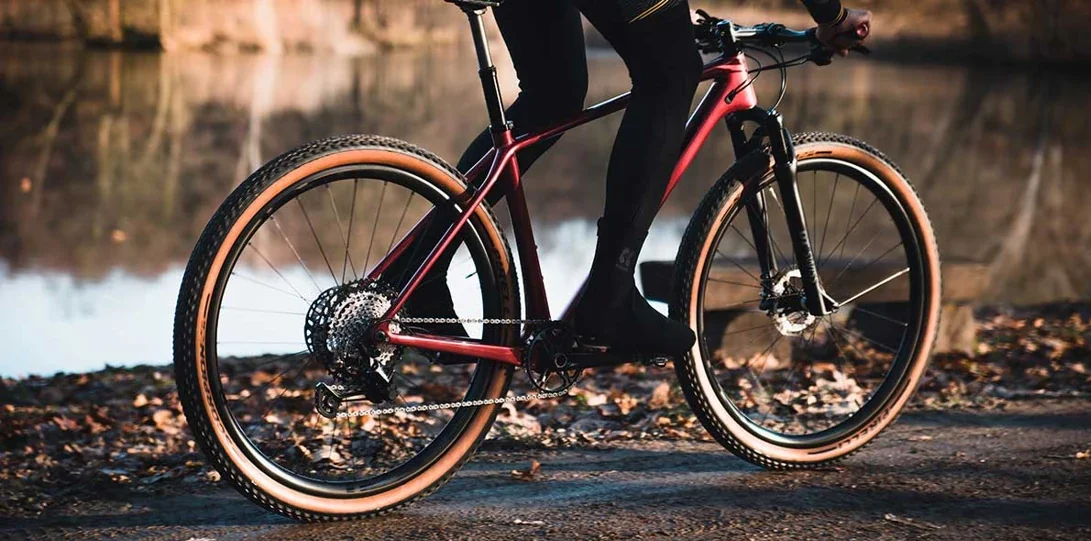

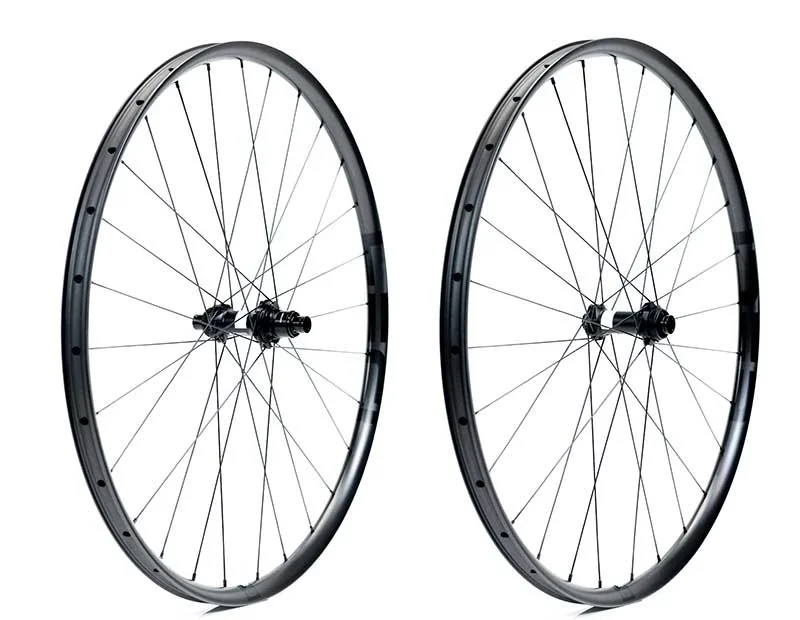

A pair of IDEA DOLOMITY wheels

IDEA DOLOMITY

The standard IDEA DOLOMITY range combines carbon rims, DT Swiss 350 BOOST hubs and DT Swiss COMPETITION RACE spokes. It focuses on strength, durability, build quality and reliable use with straightforward maintenance.

Lower weight helps acceleration. The final configuration balances quality, performance and price, while allowing individual components to be serviced later.

Hubs
DT Swiss 350 BOOST SP CL
Spokes
DT SWISS COMPETITION RACE
Spoke holes
28/28 holes
Weight limit
120 kg
Pair weight
1 210–1 260 g

Range character IDEA rating

85 / 100
90 / 100
85 / 100
Choose DOLOMITY
02Low weight and carbon spokes

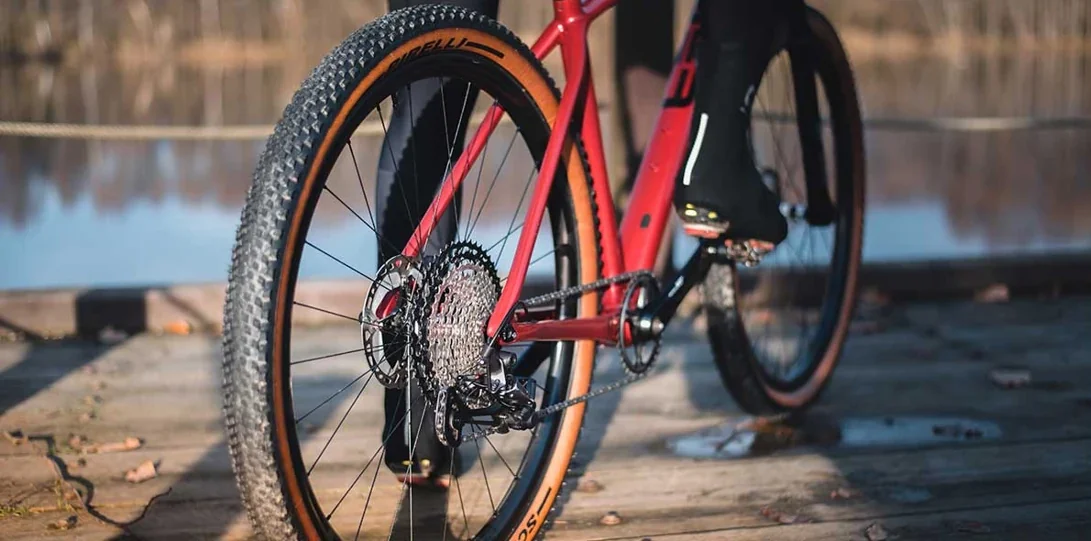

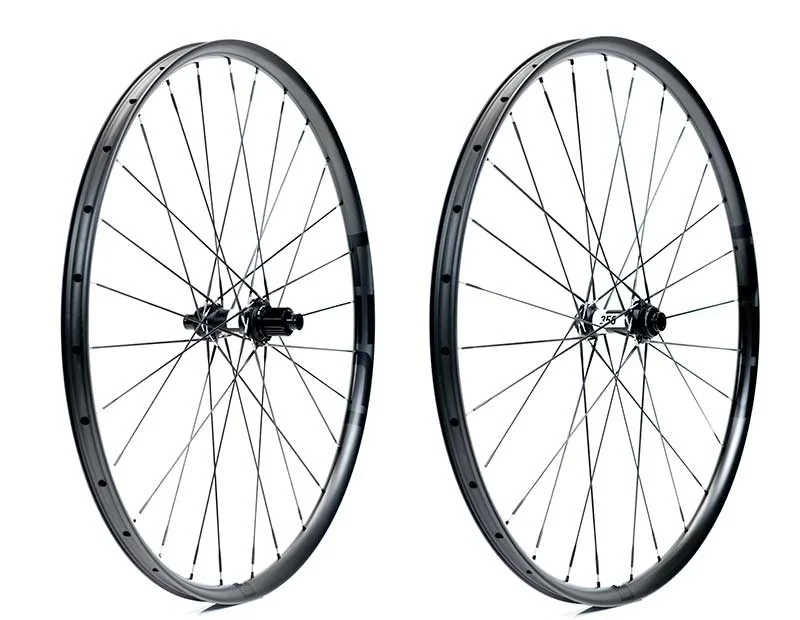

A pair of IDEA DOLOMITY EVO wheels

IDEA DOLOMITY EVO

IDEA DOLOMITY EVO pairs IDEA EVO CARBON spokes with DT Swiss 350 BOOST hubs. The spokes are compatible with common hub types and standard nipples.

It combines the proven DOLOMITY foundation with the low weight and high strength of carbon spokes, while retaining practical servicing and individual spoke replacement.

Hubs
DT Swiss 350 BOOST SP CL
Spokes
IDEA EVO CARBON SP
Spoke holes
28/28 holes
Weight limit
130 kg
Pair weight
1 070–1 120 g

Range character IDEA rating

100 / 100
100 / 100
100 / 100
Choose DOLOMITY EVO

Weights refer to standard specifications. The range character ratings are an indicative manufacturer comparison.

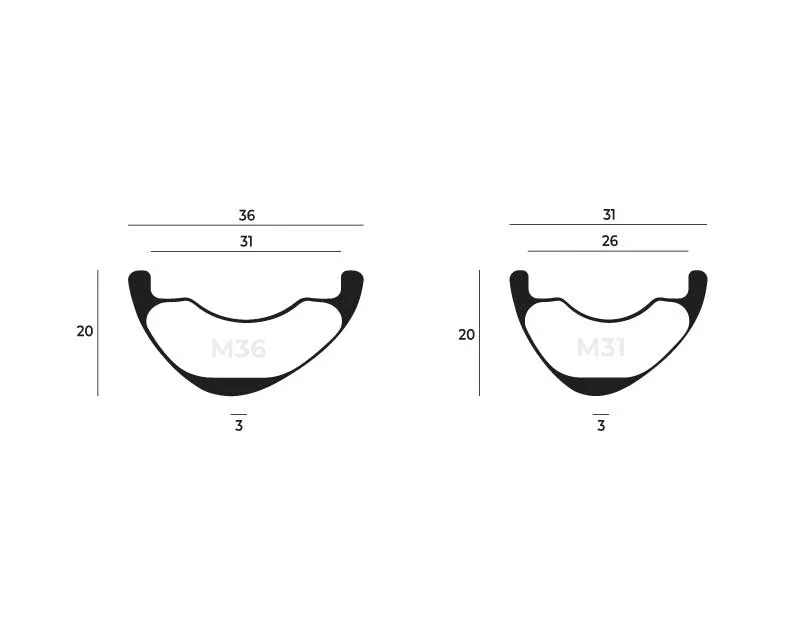

IDEA DOLOMITY carbon rim geometryIDEA DOLOMITY / EVO

02 / CARBON RIMS

Asymmetry
for a stronger whole

Two rim widths, with internal dimensions of 26 or 31 mm, share a depth of 20 mm. The new carbon rim structure reduces weight while maintaining strength and durability.

The −3 mm asymmetric geometry optimises spoke angles relative to the hub. M31 and M36 rims are shared by DOLOMITY and DOLOMITY EVO.

26 / 31 mmInternal width
31 / 36 mmExternal width
20 mmRim depth
Choose an individual rim

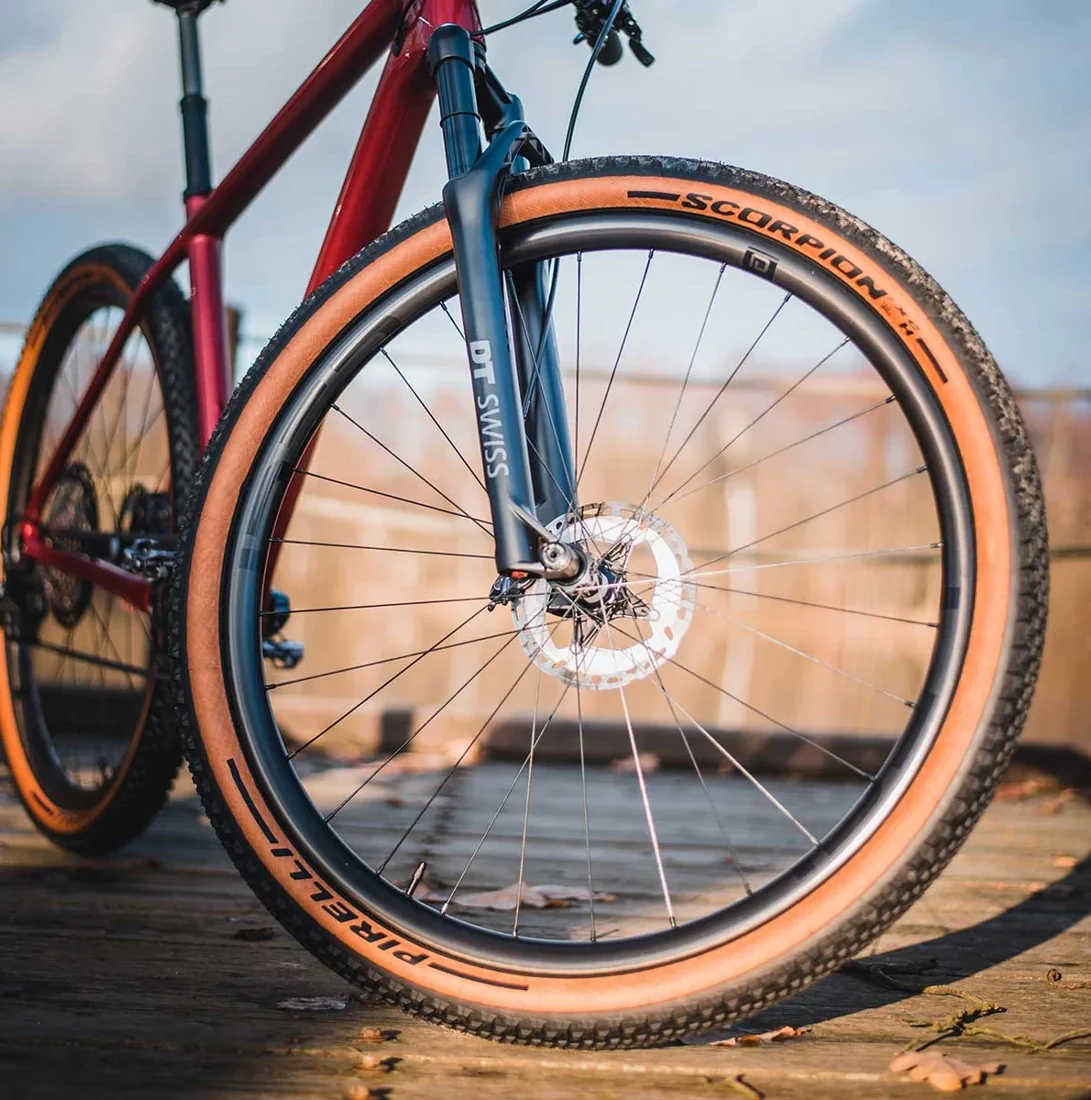

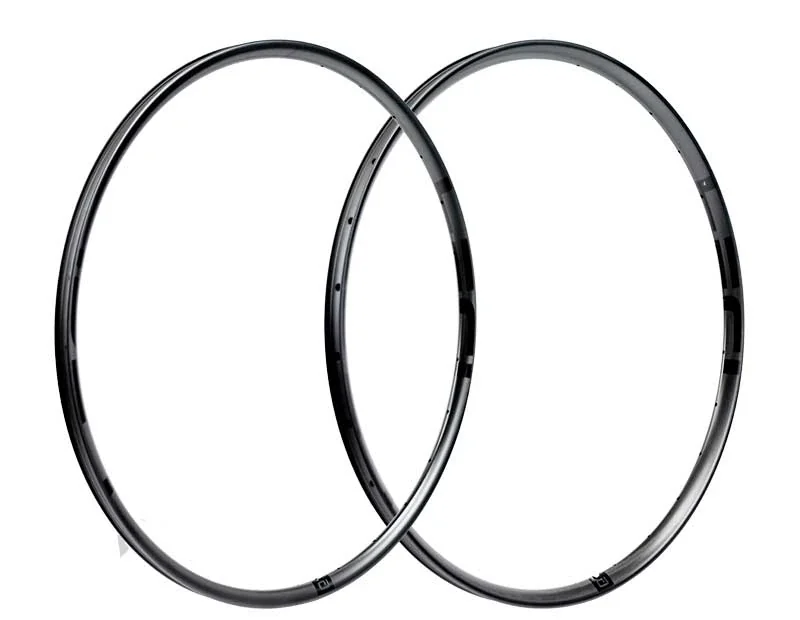

IDEA DOLOMITY rims in IDENTITY BLACK design

IDENTITY BLACK

Understated and distinctively IDEA

The unified design combines matt black with a subtle IDEA logo. It complements the bike’s appearance and lets the construction speak for itself.

The graphics also serve as a trademark and are not intended to be removed. An additional marking is inside the rim profile, opposite the valve.

HOOKLESS / COMPATIBILITY

The right tyre
The right pressure

For DOLOMITY the specified tubeless tyre size is 29 × 2.25 and larger, in a hookless-compatible specification. Dimensions follow ETRTO – European Tyre and Rim Technical Organisation.

The geometry supports tubeless setups and conventional inner tubes. Both require a compatible tubeless tyre.

from 1,0 barLow pressure listed for off-road riding

Lower pressure helps the tyre tread find grip. Choose pressure for the terrain, load and specific tyre; the maximum pressure listed for DOLOMITY rims is 4.0 bar.

Tyre and pressure guide

RIM GEOMETRY

Precise dimensions
for every model

Two internal widths and −3 mm asymmetry
A shared foundation across the range

Scroll the table horizontally

IDEA rim geometry DOLOMITY
ModelDepthInternal / external widthWeightERDType
IDEA M31 DOLOMITY20 mm26/31 mm260 g302 mmhookless
IDEA M36 DOLOMITY20 mm31/36 mm285 g302 mmhookless

The catalogue lists an ERD of 302 mm for both rims. Before building or modifying a wheel, we’ll verify the required dimensions for your specific rim and hub.

03 / HUBS

A reliable foundation
in BOOST specification

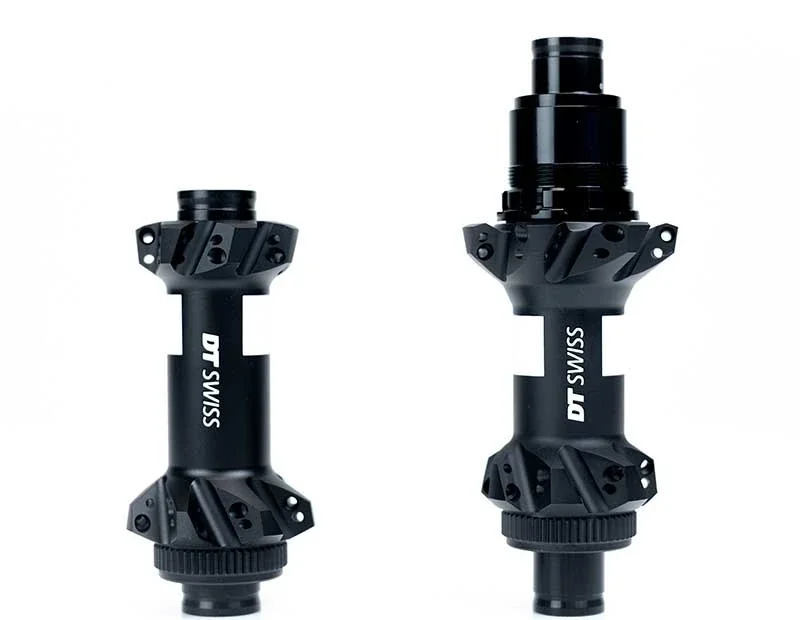

DT Swiss hubs – BOOST version as specified

DOLOMITY / DOLOMITY EVO

DT Swiss 350 / 240 / 180 BOOST

Standard specifications use DT Swiss 350. All models DOLOMITY and DOLOMITY EVO offer the higher-end DT Swiss 240 or 180. Choose your exact specification when configuring.

Standard model
DT Swiss 350 BOOST SP CL 28/28
Ratchet
36 teeth
Bearings as specified
TPI stainless steel
Freehub / option
SRAM, Shimano, Campagnolo
Thru-axles
110 × 15 / 148 × 12 mm
Hub weight
360 g

04 / SPOKES

Steel or carbon
Every spoke matters

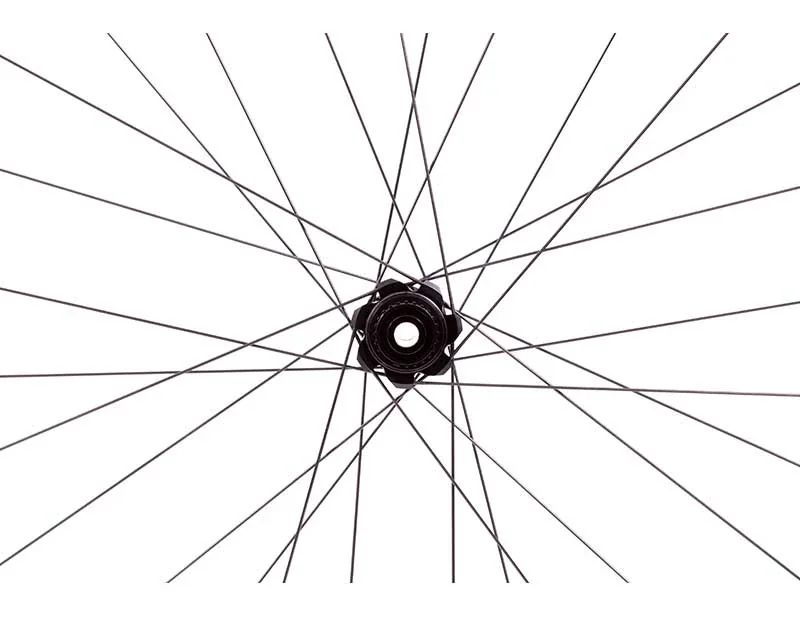

DOLOMITYDT Swiss COMPETITION RACE SP

Steel spokes

DT Swiss COMPETITION RACE SP

Strength, reliability and low weight in a proven steel spoke setup. DT Swiss COMPETITION RACE spokes are easy to service and form the standard specification of the DOLOMITY range.

Profile
1.6 × 1.6 mm
Thread
2.0 mm
Spoke weight
4.7 g
Spoke set weight
263 g
Conventional DT Swiss spokes with straightforward servicing

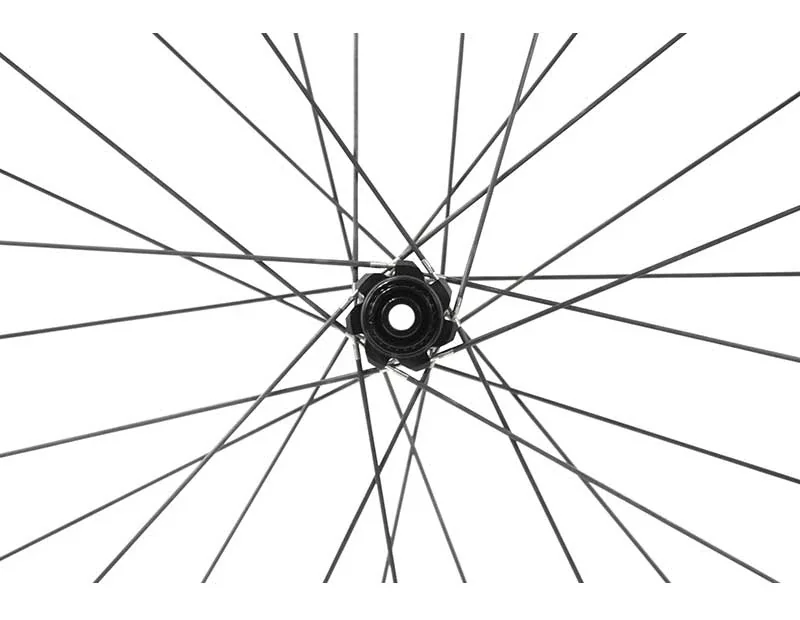

DOLOMITY EVOIDEA EVO CARBON SP

Carbon spokes

IDEA EVO CARBON SP

Carbon spokes combine low weight and high strength. According to the IDEA catalogue, their aero profile reduces spoke aerodynamic drag by up to 15%.

The construction retains standard nipples and compatibility with common hubs. The wheels can be trued conventionally and spokes replaced individually.

Profile
3.0 × 1.4 mm
Thread
2.0 mm
Spoke weight
2.5 g
Spoke set weight
123 g
Conventional truing · Individual spoke replacement
The milKit tubeless system for DOLOMITY

TUBELESS SYSTEM

Ready
for milKit

IDEA wheels DOLOMITY can be fitted with a milKit tubeless kit. The right combination of rim, compatible tyre and system allows higher-volume tyres and suitable pressure for the terrain.

Discover the tubeless system

IDEA / EXPLORE THE DETAILS

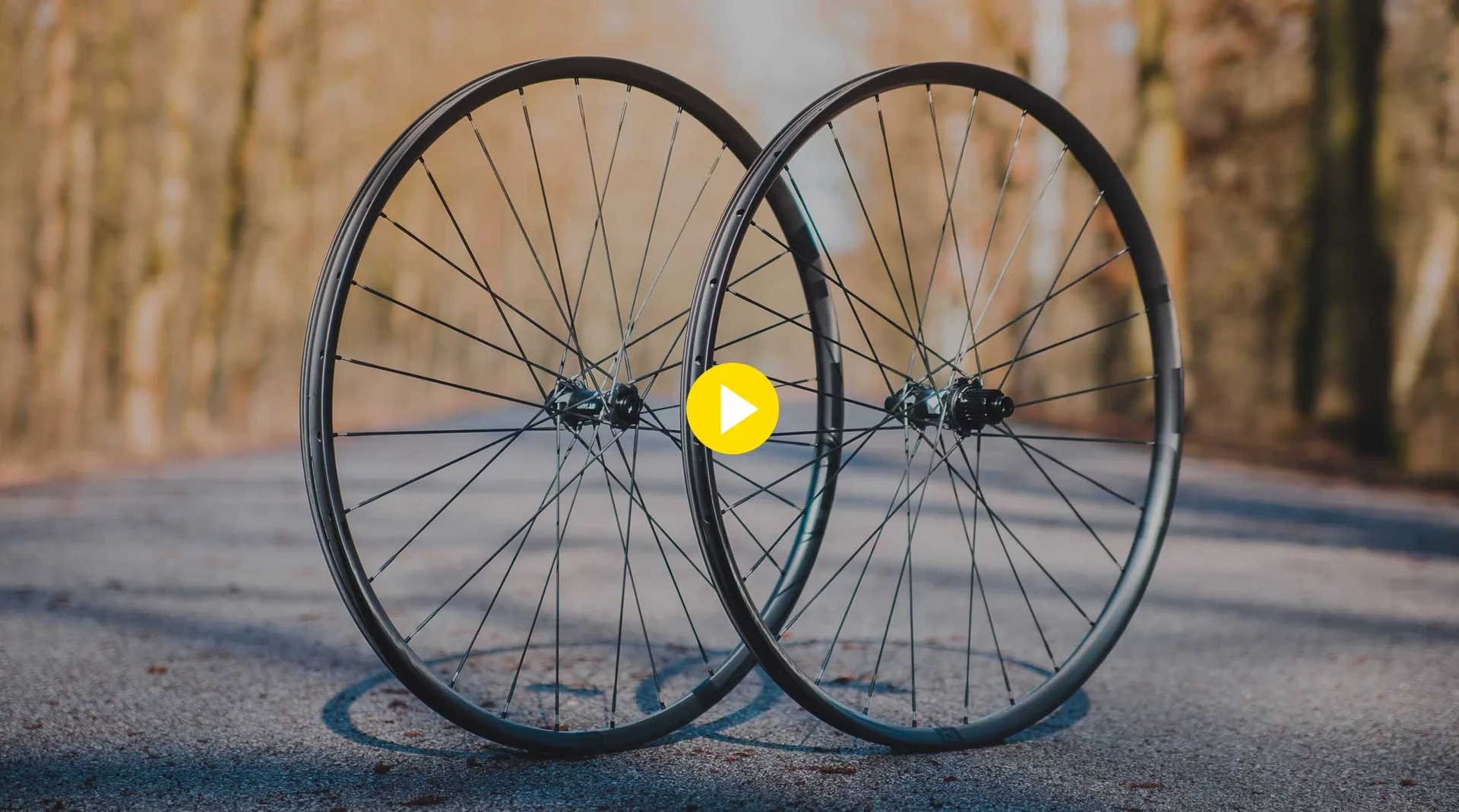

DOLOMITY
in motion

Open the video separately

05 / FULL COMPARISON

4 configurations
Every number

Weight, hubs, spokes and weight limit
Compare specific specifications

Showing 4 of 4 configurations

Scroll the table horizontally

Standard IDEA wheelset specifications DOLOMITY
ModelHubsSpokesSpoke holesWeight limitWeightShop priceOptions
IDEA M31 DOLOMITYDT SWISS 350 SP CLDT SWISS COMPETITION RACE28/28 holes120 kg1210 gfrom 29,900 CZKChoose in the shop →
IDEA M36 DOLOMITYDT SWISS 350 SP CLDT SWISS COMPETITION RACE28/28 holes120 kg1260 gfrom 29,900 CZKChoose in the shop →
IDEA M31 DOLOMITY EVODT SWISS 350 SP CLIDEA EVO CARBON SP28/28 holes130 kg1070 gfrom 36,900 CZKChoose in the shop →
IDEA M36 DOLOMITY EVODT SWISS 350 SP CLIDEA EVO CARBON SP28/28 holes130 kg1120 gfrom 36,900 CZKChoose in the shop →

The DOLOMITY and DOLOMITY EVO ranges offer DT Swiss 240 or 180 hubs. We’ll refine the exact specification together when choosing your configuration.

The catalogue figure starting at 990 g differs from the lightest specific configuration in the table, at 1,070 g. Compare weights for equivalent specifications.

Choose your own configuration

06 / TECHNICAL DATA

From construction
to the right tyres

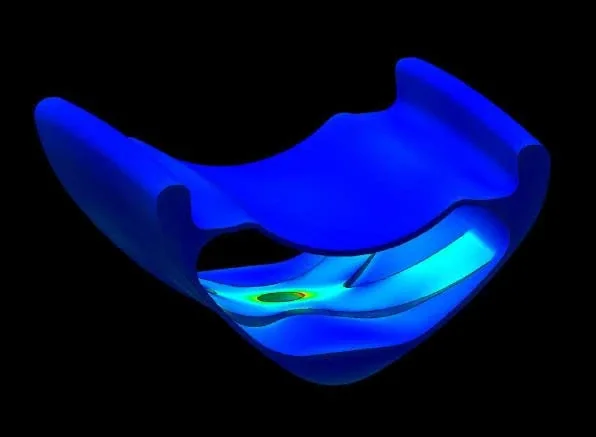

CAD load testing

CAD load testing

CAD load-test data helps guide the construction of individual IDEA wheelset ranges

Test LAB

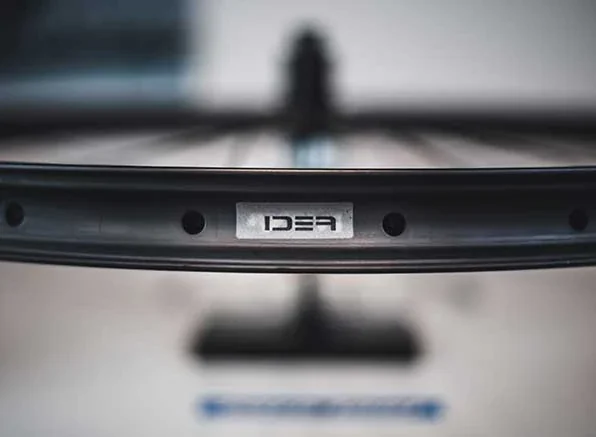

Recommended tyres and pressures

Recommended tyres and pressures

A compatibility and recommended pressure guide for each wheel model. Always check your specific rim and tyre combination.

Tyres & pressures
IDEA wheel construction data

IDEA wheel construction data

Technical component descriptions, spoke lengths and servicing data for long-term support of each model.

Construction data

07 / EXPERIENCE WITH IDEA DEVELOPMENT

Development and miles
Riding experience

DEVELOPMENT / TOMÁŠ BÁBEK

Developing IDEA wheels together

Tomáš Bábek describes his fifth season riding IDEA ROUBAIX ULTRA. At 88 kg and with sprint power reaching 2,300 watts, he values stiffness, low weight and reliability.

The review explores confidence in the equipment and experience with the construction that underpins IDEA wheel development.

Read the full review
TEST / MALLORCA

CALOBRA ULTRA in Mallorca

Testing continues with customers on demanding descents and long rides. Customer Honza shares his impressions of IDEA CALOBRA ULTRA wheels on Mallorca’s roads.

Real-world riding experience helps verify the construction and limits of IDEA products.

Read the full test

THE TEAM BEHIND IDEA

Our name in the peloton

Rafkarna and its IDEA brand are the main partners of Rafkarna IDEA Cycling Team. Discover its history, sporting results and shared foundations.

IDEA team & development

YOUR NEXT WHEELS

Choose your IDEA
We’ll refine the details together

Model, rim depth, hubs and tyres. Prepare a configuration and discuss it with us in person.

Choose a configurationGet advice on your choice
