IDEA / ROAD BIKE / FRAMESET
Your roads
Your own signature

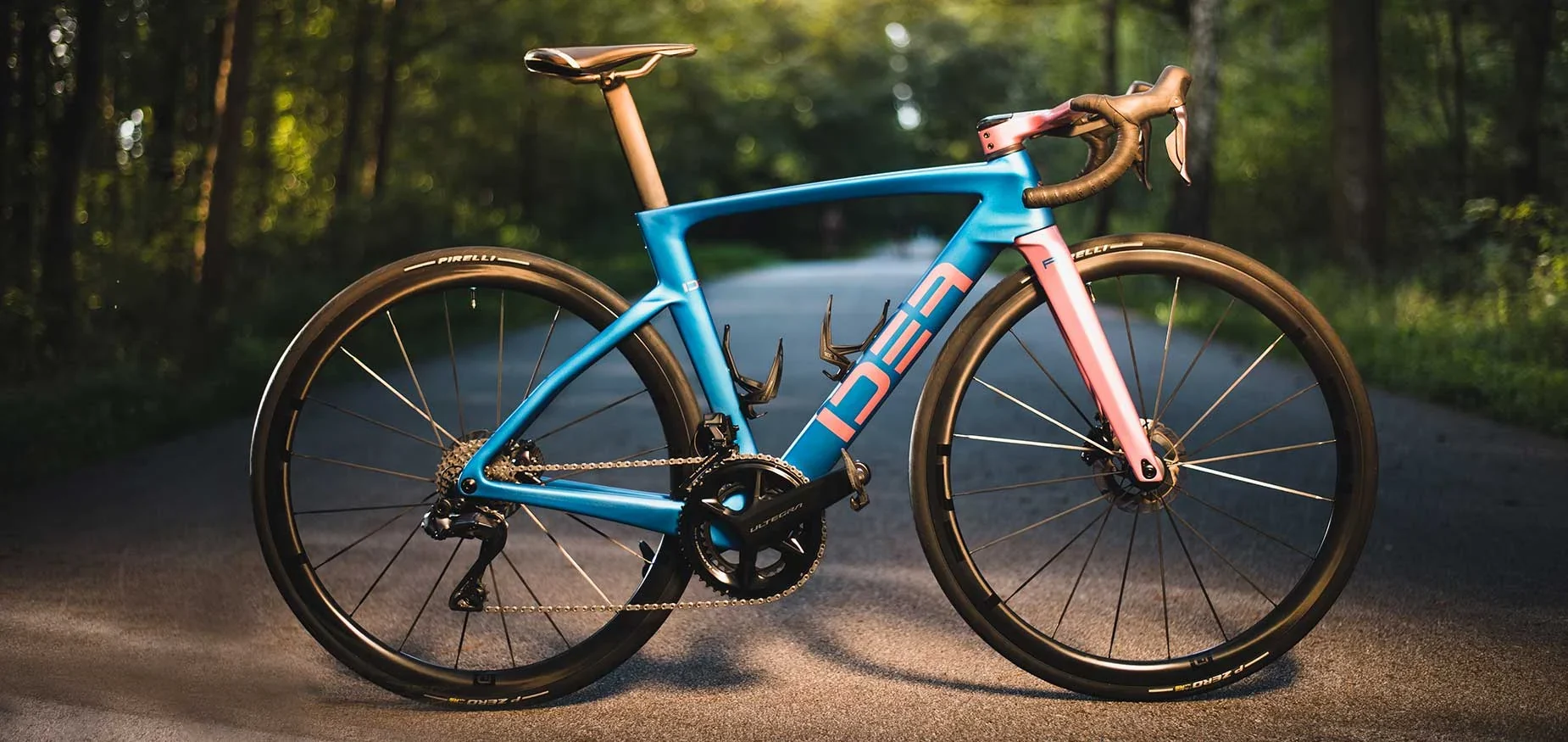

IDEA / CUSTOM BUILD
The third generation of the IDEA R1 AERO frameset combines low weight with performance geometry and efficient power transfer. The frame alone weighs 960 g; a complete bike in the top specification and size 52 weighs 6.9 kg.
We choose the frame size, cockpit dimensions, components and colours together. The result is a custom build that suits your position, riding style and personal taste.
THIRD-GENERATION IDEA R1
R1 AERO evolution continues with a redesigned seatpost clamp, new cockpit and headset. The frame offers clearance for tyres up to 700 × 32 and a performance riding position.
Low weight, strength and aerodynamics work together as one. From the frame shape to the components that complete the bike’s character.

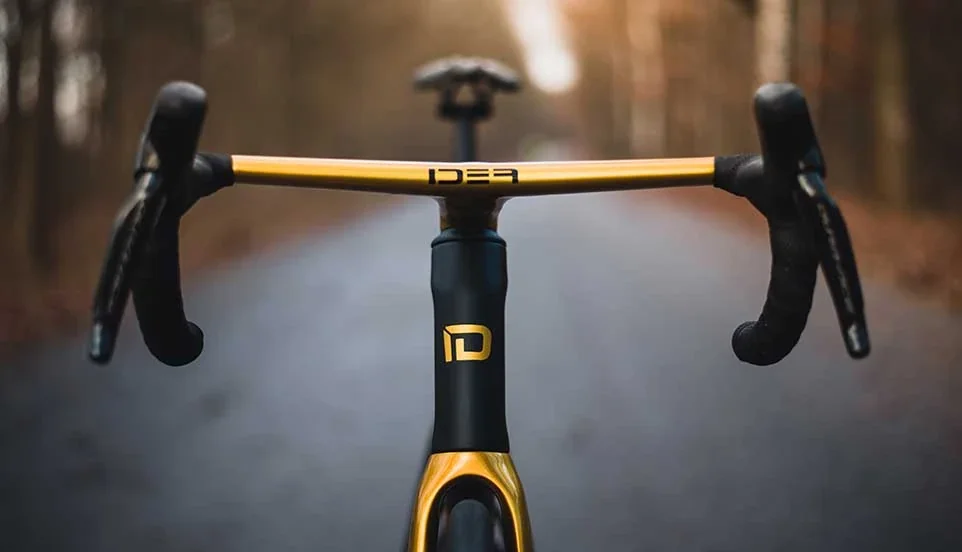

COCKPIT / ERGONOMICS
The redesigned IDEA R1 integrated handlebars have a new ergonomic shape. Four widths and four stem lengths let you match the cockpit to the frame geometry and your needs.
The cable routing allows straightforward handlebar removal when transporting the bike. According to IDEA’s development data, the headset is 20% stronger than on the previous model.
01 / FRAME GEOMETRY
Five sizes / 49 to 58
Dimensions with a purpose
On smaller screens, scroll the table horizontally
| Size | Stack | Reach | A | B | C |
|---|---|---|---|---|---|
| 49 | 514 mm | 373 mm | 460 mm | 511 mm | 105 mm |
| 52 | 527 mm | 378 mm | 480 mm | 529 mm | 115 mm |
| 54 | 547 mm | 384 mm | 495 mm | 541 mm | 135 mm |
| 56 | 568 mm | 392 mm | 520 mm | 560 mm | 155 mm |
| 58 | 592 mm | 404 mm | 540 mm | 585 mm | 180 mm |

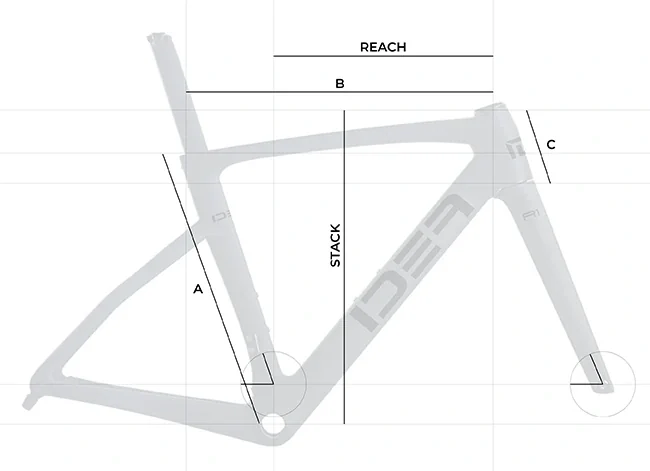

All table dimensions are in millimetres. A, B and C correspond to the frame diagram.
PERSONAL BIKE FITTING
Size selection starts with stack and reach: the frame’s actual height and length, which can be compared with other models. The saddle-height table is a guide; size and position are determined through measurements and your individual needs.
Arrange a bike fitOn smaller screens, scroll the table horizontally
| Size | 49 | 52 | 54 | 56 | 58 |
|---|---|---|---|---|---|
| Saddle height (mm) | 670-700 | 700-730 | 730-750 | 750-780 | 780-830 |
02 / INTEGRATED COCKPIT
Ergonomics to suit your position
Internal cable routing
On smaller screens, scroll the table horizontally
| Handlebar width | Stem length | Drop | Angle |
|---|---|---|---|
| 380 mm | 90/100/110/120 mm | 125 mm | 9° |
| 400 mm | 90/100/110/120 mm | 125 mm | 9° |
| 420 mm | 90/100/110/120 mm | 125 mm | 9° |
| 440 mm | 90/100/110/120 mm | 125 mm | 9° |
Each width of 380, 400, 420 and 440 mm can be combined with a 90, 100, 110 or 120 mm stem. Drop is 125 mm and angle 9°. We’ll refine your choice through bike fitting.
03 / DESIGN & HAND FINISHING
Finished in the Czech Republic
With room for your ideas

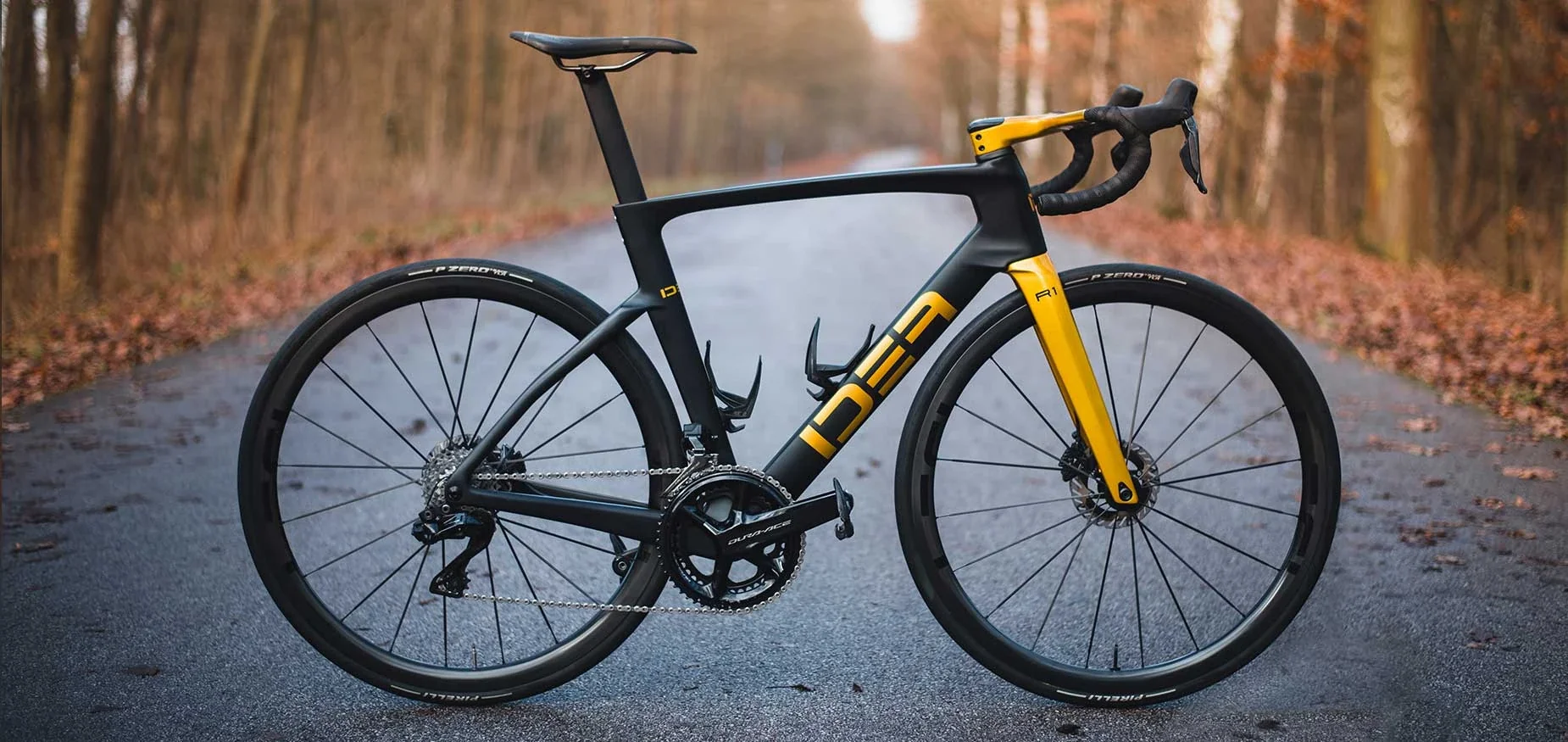

The matt black and gold frame is complemented by handlebars and a fork in reflective gold.
Every frame is hand-painted in the Czech Republic, with care taken over the finish of each piece.

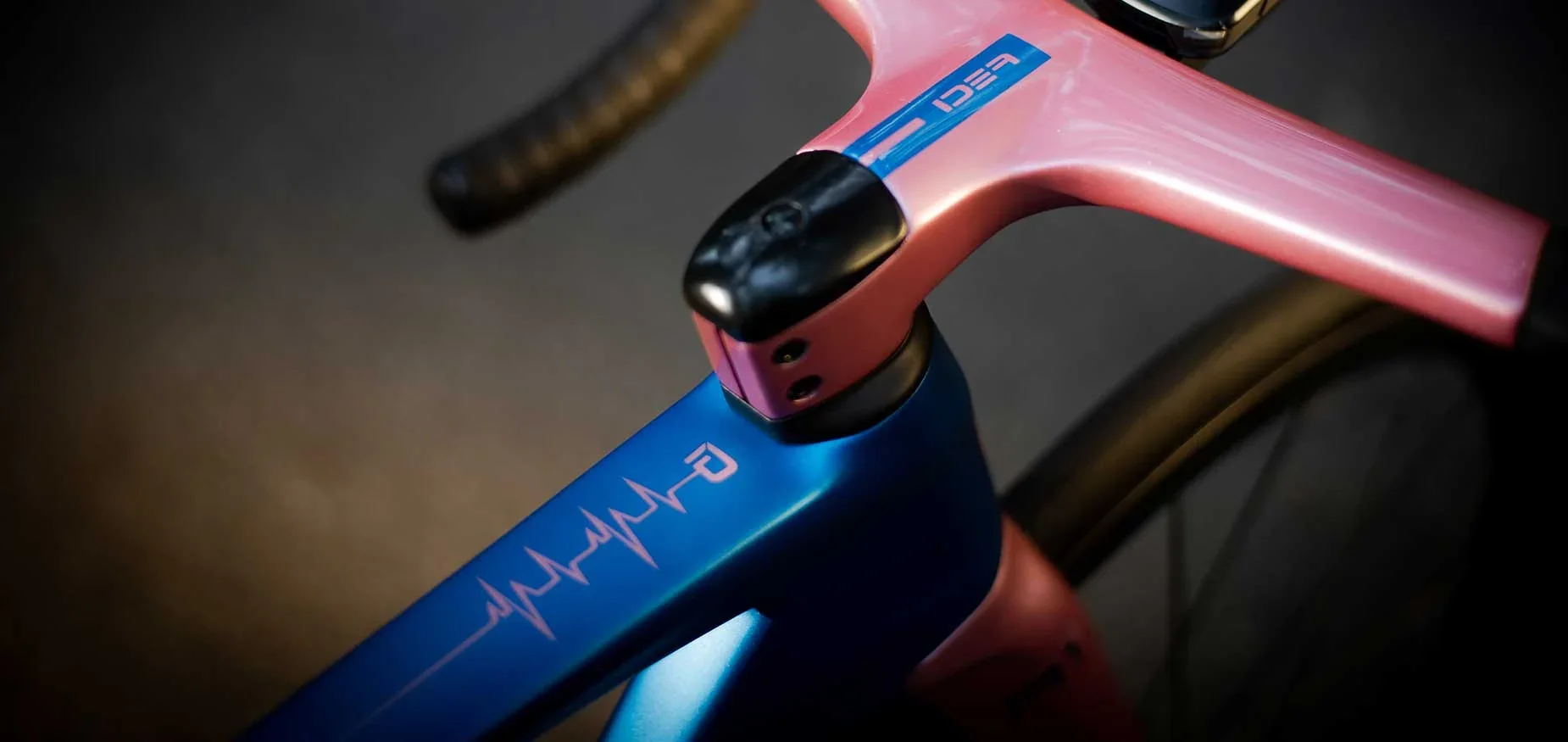

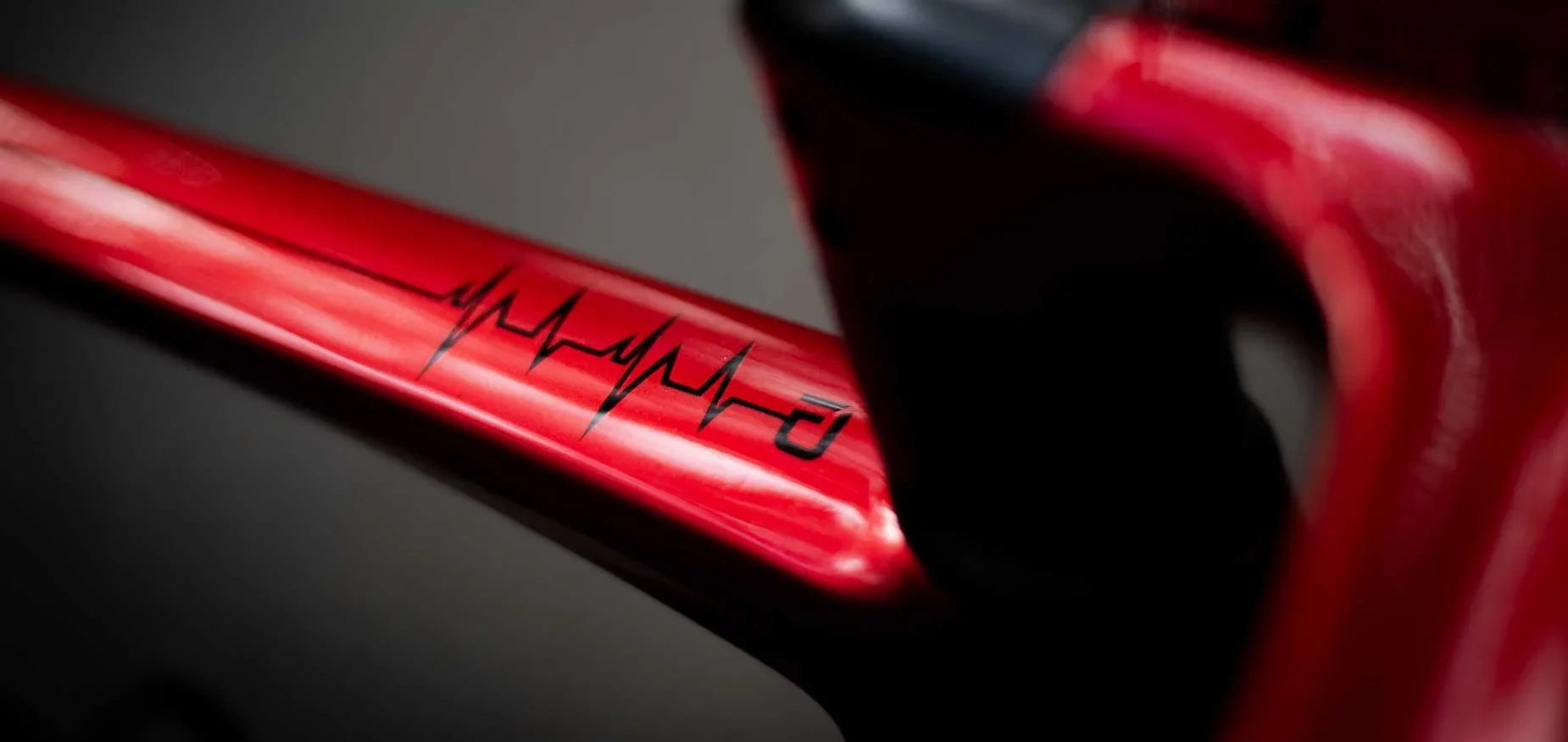

We can adapt the colours of the standard TEAM design to your individual requirements.
04 / TECHNOLOGY IN DETAIL
Third-generation IDEA R1 development
Every element has a role
−25 g

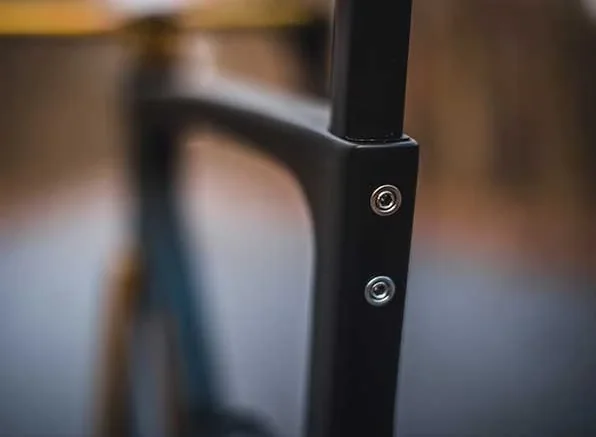

The redesigned seatpost clamp provides secure fastening and reduces the mechanism’s overall weight by 25 g.
+20 %

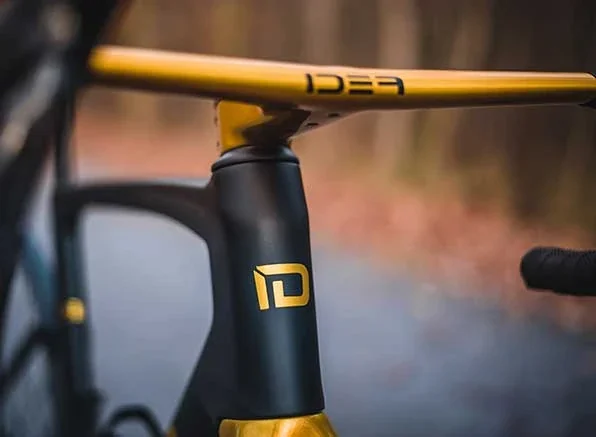

Cables run inside the cockpit. The construction makes it easier to remove the handlebars for air travel; according to IDEA, the headset is 20% stronger than on the original model.

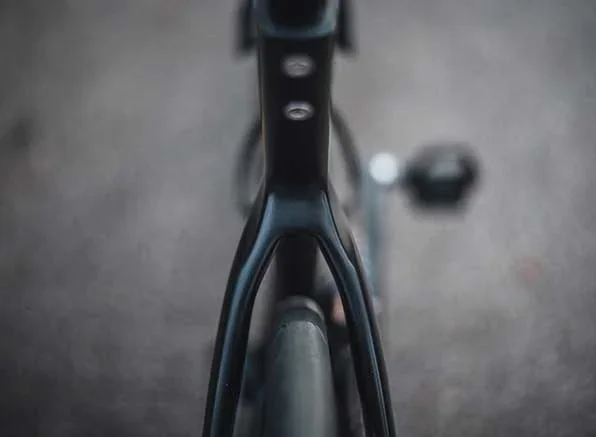

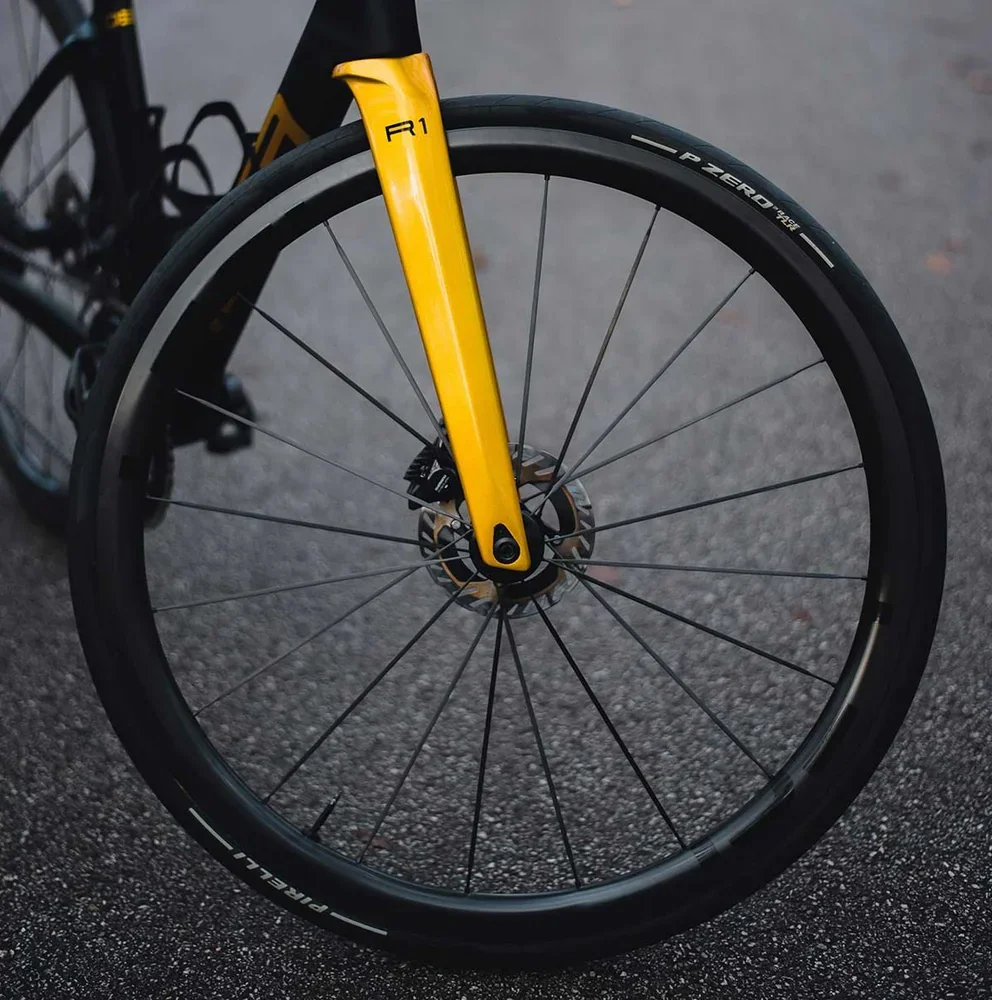

32 mm
Frame clearance of up to 32 mm allows wider tyres and wheelsets with a wide hookless profile. We choose each tyre and rim combination with compatibility in mind.
IDEA / FILM
05 / BUILDS & PRICES
Custom build / 6–8 weeks
All prices include VAT
01 / Your personal introduction to IDEA
FULL SPECIFICATION
Size based on bike fitting · Individual design
Custom build / 6–8 weeks
02 / A balanced performance build
FULL SPECIFICATION
Size based on bike fitting · Individual design
Custom build / 6–8 weeks
03 / The lightest catalogue specification
FULL SPECIFICATION
Size based on bike fitting · Individual design
Custom build / 6–8 weeks
For all three specifications, we select geometry based on bike fitting, design, component options, wheel model, tyre width and saddle type and width. Listed weights refer to the corresponding specification; 6.9 kg is quoted for size 52.
Prices apply to the listed specifications and include VAT. We’ll confirm the final specification, price and current delivery time during a personal consultation.
INDIVIDUAL FRAMESET
Want to start with a frameset? We’ll personally help you choose the size, cockpit and paintwork, then prepare an individual quotation.
THE TEAM BEHIND IDEA
Rafkarna and its IDEA brand are the main partners of Rafkarna IDEA Cycling Team. Discover its history, sporting results and shared foundations.
IDEA team & developmentYOUR NEXT IDEA
We’ll discuss the frame, cockpit, components and design with you. Together, we’ll create a build that suits your riding style.
Arrange a personal consultationExplore CALOBRA wheelsets
